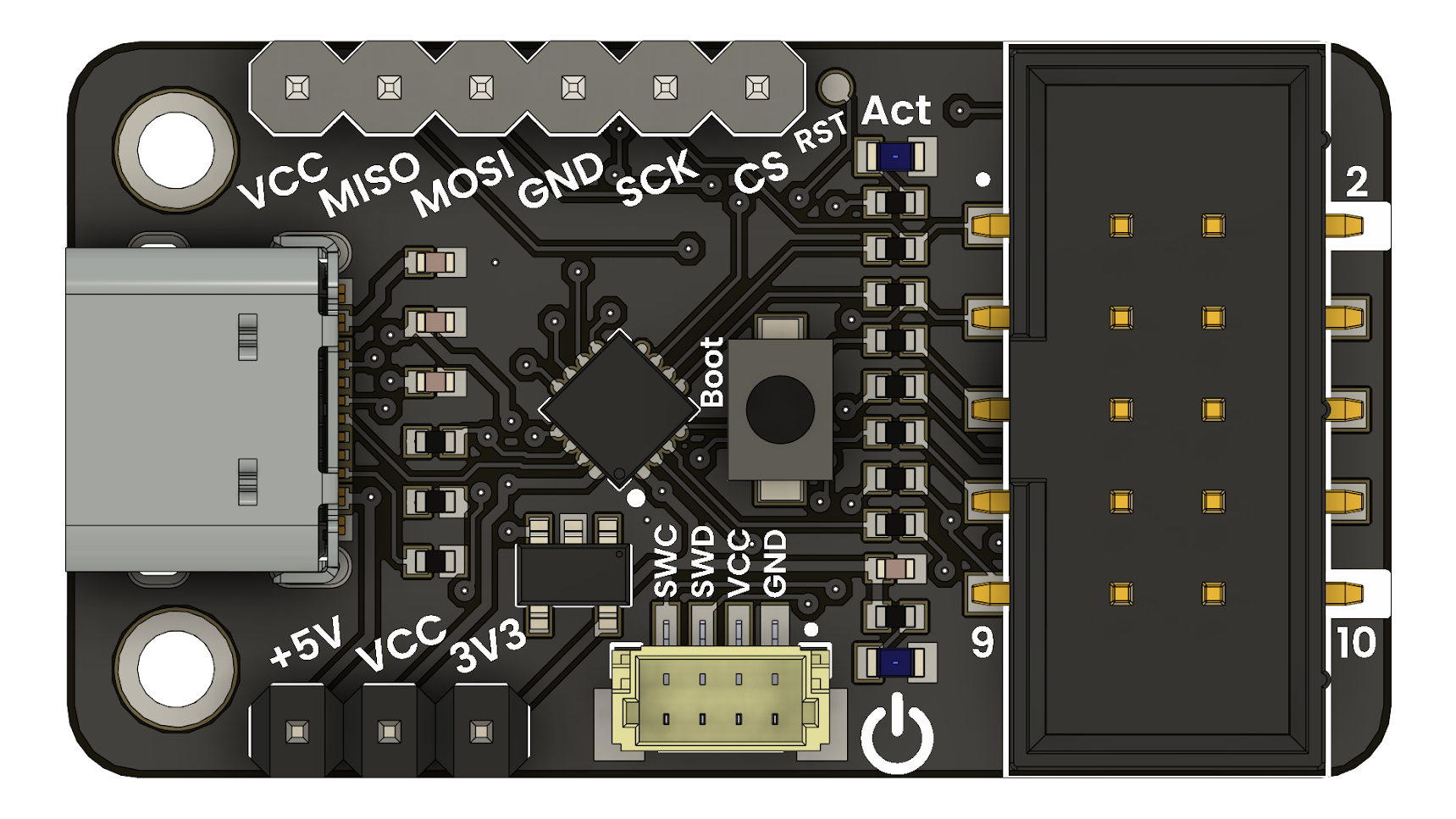

CH552 USB Multi-Protocol Programmer

The CH552 USB Multi-Protocol Programmer is a compact and cost-effective device designed for embedded systems development, testing, and debugging. It supports multiple hardware architectures including AVR, ARM Cortex-M (CMSIS-DAP), and CPLD (MAX II), making it ideal for a wide range of applications such as firmware development, educational labs, and low-volume production environments.

This programmer is built around the CH552 microcontroller, which is based on the enhanced 8051 architecture. It offers native USB support and a range of digital interfaces (GPIO, SPI, I2C, UART), enabling seamless communication between the host system and the target hardware.

Microcontroller Core

The programmer integrates a CH552 microcontroller with the following characteristics:

  • 8051-based enhanced core, up to 24 MHz.

  • Native USB 2.0 Full-Speed device.

  • Multiple GPIO pins for signal control and mapping.

  • SPI, I2C, and UART interfaces for protocol bridging.

  • Low power consumption and small form factor.

Features

  • Multi-architecture support: Compatible with AVR (ISP), ARM Cortex-M (CMSIS-DAP), and CPLD (JTAG).

  • In-System Programming (ISP): Flash microcontrollers without desoldering.

  • Real-time debugging: Step-through and breakpoint debugging with OpenOCD and PyOCD.

  • JTAG boundary-scan: For CPLD configuration and board testing.

  • Configurable GPIOs: Adaptable for use as JTAG, SWD, or ISP lines.

  • USB 2.0 interface: Direct connection to host PC using USB CDC or HID.

  • Toolchain compatibility: Works with avrdude, OpenOCD, PyOCD, urJTAG, and others.

  • Cross-platform support: Compatible with Linux and partially supported on Windows.

Advantages

  • Compact design: Suitable for breadboards and embedded setups.

  • Versatility: One device for multiple programming and debugging protocols.

  • Open-source firmware: Fully customizable and community-supported.

  • Cost-effective: Inexpensive alternative to commercial debuggers and programmers.

  • Linux-friendly: No need for proprietary drivers on Linux systems.

  • Ideal for education: Can be used in microcontroller courses and workshops.

Limitations

  • External power required: Cannot supply power to high-current target boards.

  • Learning curve: Requires knowledge of protocols like CMSIS-DAP, JTAG, or AVR ISP.

  • Firmware updates: May require reflashing to support new features or targets.

  • Partial Windows support: Some tools may require manual setup or driver adjustments.

Compatibility

CMSIS-DAP (ARM Cortex-M)

  • Fully compatible with CMSIS-DAP v2.0 protocol.

  • Supported by OpenOCD and PyOCD.

  • Tested with:

    • STM32F0

    • RP2040 (Raspberry Pi Pico)

    • PY32 series

    • Other Cortex-M0/M3/M4 devices

AVR ISP

  • Works with avrdude using USBasp-like interface.

  • Supports:

    • ATmega328P

    • ATtiny85

    • ATmega2560

    • Other classic 8-bit AVR microcontrollers

CPLD JTAG

  • Supports Intel (formerly Altera) MAX II series.

  • Compatible with JTAG tools like urJTAG or openFPGALoader.

  • JTAG signals exposed via GPIO (TDI, TDO, TCK, TMS).

Use Cases

  • Firmware flashing and in-system programming.

  • Debugging embedded applications with CMSIS-DAP.

  • Educational labs and training environments.

  • Low-cost production line programming.

  • Boundary-scan tests for hardware bring-up.

  • CPLD configuration and prototyping.

Resources

  • Firmware: [wagiminator/CH552-DAPLink](https:)

  • CH552 Datasheet: Available from WCH official website.

  • Tools:

    • OpenOCD, PyOCD

    • avrdude

    • urJTAG, openFPGALoader

  • Community support: GitHub issues, Reddit, Hackaday, forums.
