DevLab: PWM AO4410 2-Channel Output Module
Introduction

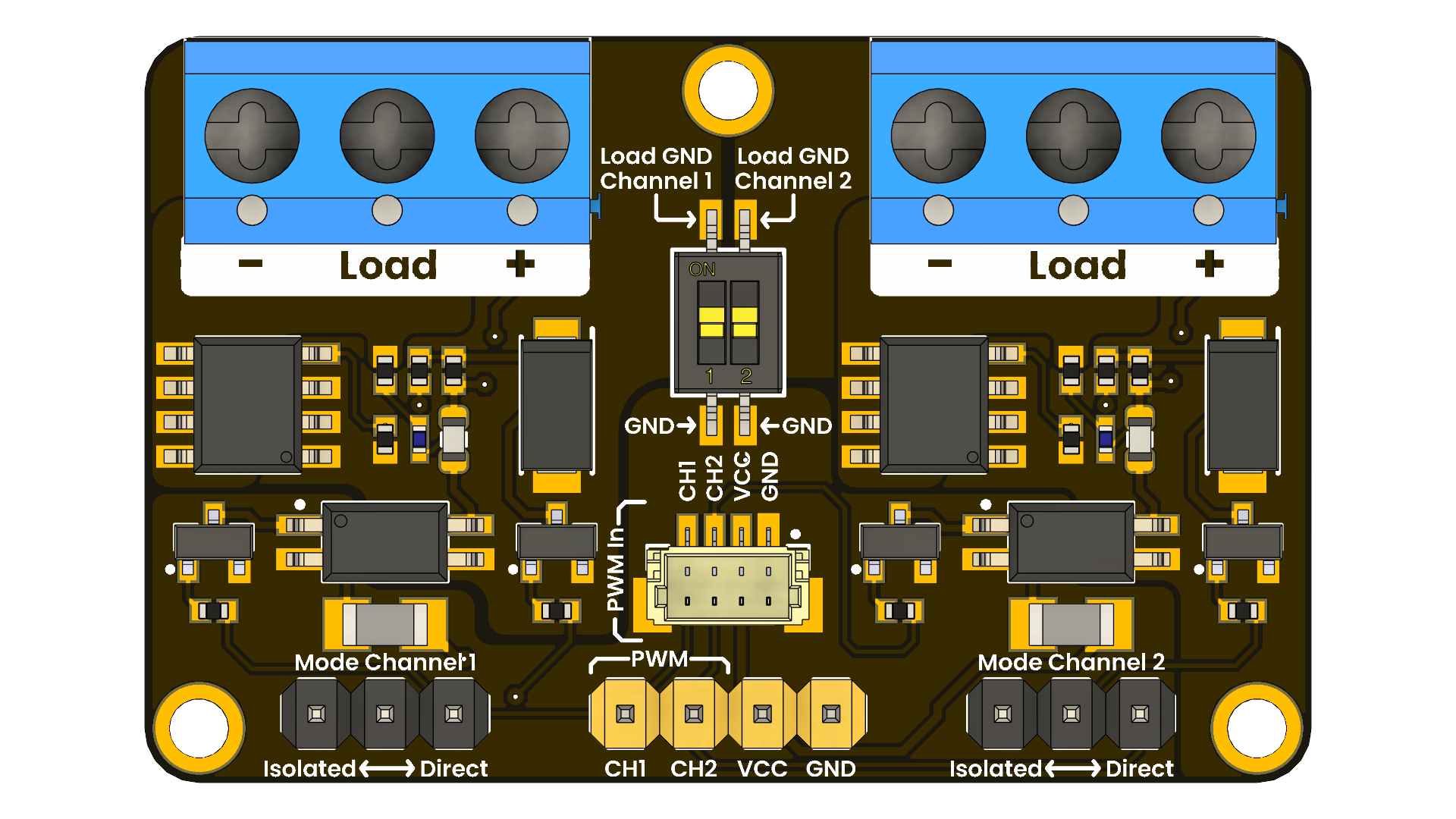

The DevLab PWM AO4410 2-Channel Output Module is a compact, two-channel PCB designed to amplify pulse-width modulation signals from a microcontroller. It enables reliable switching of external loads at higher voltages and currents than the microcontroller can natively handle. With its clearly labeled screw-terminal connectors, the module is well-suited for motor speed control, high-power LED dimming, and other projects requiring precise power regulation via PWM. The board also includes a QWIIC-compatible 4-pin header, allowing for easy plug-and-play wiring and daisy-chaining of power and PWM signals using standard Qwiic cables.
Overview
| Feature | Details |
|---|---|
| 2-channel PWM | Two independent channels for versatile control |
| 5V logic | Compatible with 3.3V and 5V microcontrollers |
| 5V power supply | Powers external devices up to 2A |
| Qwiic connector | 4-pin connector for easy integration |
Use Cases
- Motor speed and direction control for DC motors
- Brightness control for high-power LEDs
- Temperature control for heating elements
- Efficient power regulation for various loads
- Amplifying PWM signals for long-distance transmission
Resources
License
All hardware and documentation in this project are licensed under the MIT License.
Please refer to LICENSE.md for full terms.
