PlatformIO Support for CH55x#

PlatformIO is the recommended workflow for new CH55x projects. The unit_ch55x_sdk repository can be used as a local PlatformIO development platform or referenced directly from GitHub.

PlatformIO uses SDCC to build CH55x firmware and generates the firmware.ihx, firmware.hex, and firmware.bin output files.

Repository: UNIT-Electronics-MX/unit_ch55x_sdk

Note

Docker and manual SDCC/Make workflows are optional and low priority. For new Ubuntu and Windows setups, install PlatformIO, configure platformio.ini, and build with pio run. macOS has not been tested in the current validation process.

Requirements#

PlatformIO Core is optional and useful for terminal-based builds or CI, but the recommended installation method is the VS Code extension.

Install PlatformIO#

Install the official PlatformIO IDE extension from the VS Code Extensions view:

  1. Open the Extensions view in Visual Studio Code.

  2. Search for PlatformIO.

  3. Click Install on the official PlatformIO IDE extension.

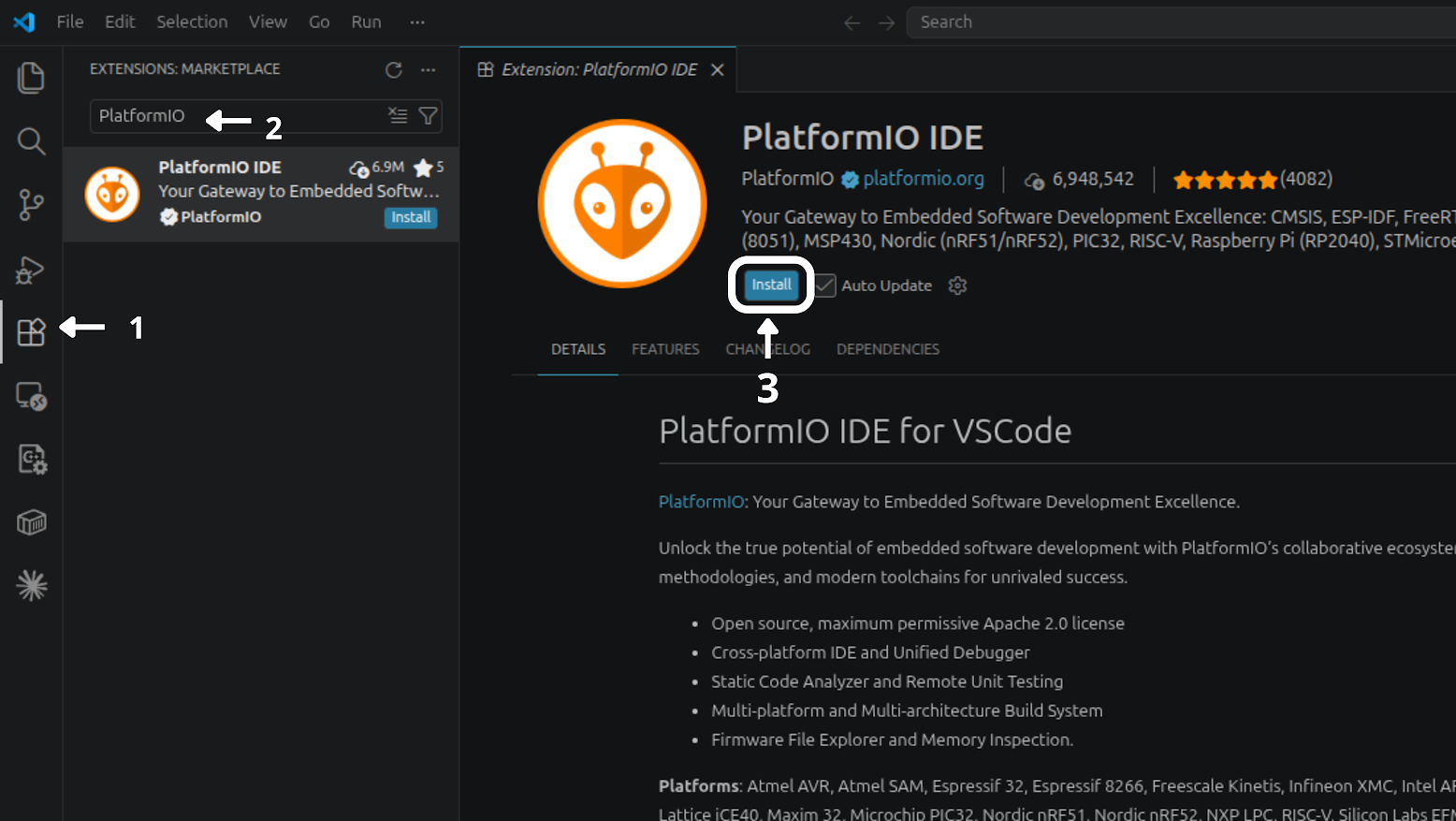

PlatformIO IDE extension installation in Visual Studio Code

Fig. 1 PlatformIO IDE extension installation steps in Visual Studio Code.#

After installation, the extension page shows PlatformIO IDE as installed and enabled in the current workspace:

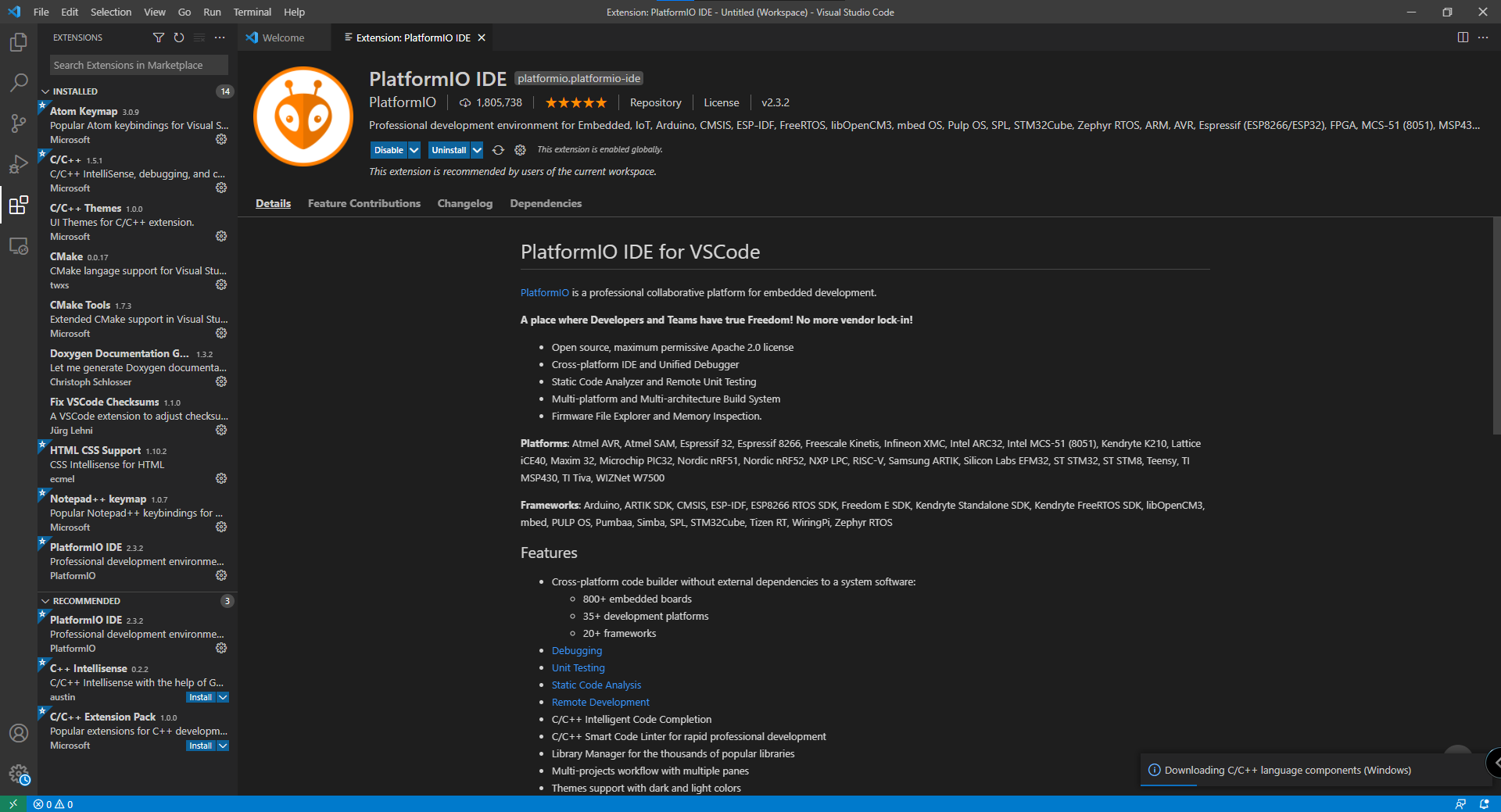

PlatformIO IDE extension installed in Visual Studio Code

Fig. 2 PlatformIO IDE extension installed and enabled in Visual Studio Code.#

Ubuntu / Linux#

Install Visual Studio Code and then install the official PlatformIO IDE extension from the VS Code Extensions view. After the extension finishes its setup, restart VS Code and verify that the pio command is available:

pio --version

Install PyUSB in the PlatformIO Python environment if upload support needs it:

~/.platformio/penv/bin/python -m pip install pyusb

USB access may also require a udev rule:

echo 'SUBSYSTEM=="usb", ATTR{idVendor}=="4348", ATTR{idProduct}=="55e0", MODE="666"' | sudo tee /etc/udev/rules.d/99-ch55x.rules
sudo udevadm control --reload-rules
sudo udevadm trigger

macOS#

macOS has not been tested in the current SDK validation process. No macOS installation, build, or upload procedure is provided until the workflow is validated.

Windows#

Install Visual Studio Code, the official PlatformIO IDE extension, Git, and the CH372 driver. The manual SDCC, MinGW, and Make setup is not required for PlatformIO projects.

Verify PlatformIO from PowerShell:

C:\Users\<user>\.platformio\penv\Scripts\platformio.exe --version

Clone the SDK#

For local development, clone the SDK:

git clone https://github.com/UNIT-Electronics-MX/unit_ch55x_sdk.git
cd unit_ch55x_sdk

Build a PlatformIO Example#

From the Blink example inside the SDK repository, run:

cd examples/platformio-blink
pio run

The generated firmware files are placed in:

examples/platformio-blink/.pio/build/unit_ch552/

Other examples that include a platformio.ini file can be built the same way:

cd examples/usb/usb_uart
pio run

Upload Firmware#

Put the CH55x board in bootloader mode and run:

pio run -t upload

The default upload_protocol = auto selects chprog.py on Linux and vnproch55x on Windows. macOS upload has not been validated.

Windows Upload with vnproch55x#

Windows upload uses vnproch55x.exe from the devlabtools package. If PlatformIO does not download the uploader automatically, install it manually in the SDK root:

cd C:\path\to\unit_ch55x_sdk
Invoke-WebRequest "https://github.com/UNIT-Electronics/Uelectronics-CH552-Arduino-Package/releases/download/v0.0.6/ch55xduino-tools_mingw32-2026.06.21.tar.bz2" -OutFile "ch55xduino-tools_mingw32-2026.06.21.tar.bz2"
tar -xjf ch55xduino-tools_mingw32-2026.06.21.tar.bz2
Test-Path .\tools\win\vnproch55x.exe

The Test-Path command must print True. The extracted layout must contain:

tools/win/vnproch55x.exe
tools/win/*.dll

After installing the uploader, build and upload from the PlatformIO project:

C:\Users\<user>\.platformio\penv\Scripts\platformio.exe run
C:\Users\<user>\.platformio\penv\Scripts\platformio.exe run --target upload

PlatformIO Configuration#

For a PlatformIO project inside this repository, point platform to the SDK root:

[env:unit_ch552]
platform = ../..
board = unit_ch552

To use a released SDK version from GitHub, pin a tag in platformio.ini:

[env:unit_ch552]
platform = https://github.com/UNIT-Electronics-MX/unit_ch55x_sdk.git#v0.1.4
board = unit_ch552

Use SDK v0.1.4 or newer for the current upload flow. Older checkouts may try to install Windows-only uploader archives as PlatformIO packages on Linux.

To use the current SDK branch directly from GitHub:

[env:unit_ch552]
platform = https://github.com/UNIT-Electronics-MX/unit_ch55x_sdk.git
board = unit_ch552

For an existing Makefile-style example where main.c is located at the project root, set the source directory globally:

[platformio]
src_dir = .

[env:unit_ch552]
platform = ../..
board = unit_ch552

The default configuration can usually stay minimal:

[env:unit_ch552]
platform = ../..
board = unit_ch552

; Arduino defaults to bootcfg 3 for CH552 P3.6 (D+) pull-up.
board_upload.bootcfg = 3

You can force a specific uploader when needed:

upload_protocol = chprog
upload_protocol = vnproch55x

For serial upload:

upload_protocol = vnproch55x_serial
upload_port = COM5

Supported Boards#

Board ID

Target

unit_ch551

CH551

unit_ch552

CH552

unit_ch554

CH554

unit_ch559

CH559

Common build overrides can be added to platformio.ini:

board_build.f_cpu = 24000000
build_flags =
  -D PIN_LED=P34

Create a PlatformIO Project#

Create a project directory with a platformio.ini file and a source file under src/:

my_ch55x_project/
|-- platformio.ini
`-- src/
    `-- main.c

Use this minimal platformio.ini:

[env:unit_ch552]
platform = https://github.com/UNIT-Electronics-MX/unit_ch55x_sdk.git#v0.1.4
board = unit_ch552

Build the project with:

pio run

Upload the project with:

pio run -t upload
