Hardware Overview
Key Technical Specifications
- Input Voltage: -
- Output Current: -
- PWM Frequency: -
- Control Interface: JST 1mm Connector
Pinout
| Channel | Description | Control Pins | Power Pins | Load Terminals | Typical Use |
|---|---|---|---|---|---|
| PWM Channel 1 | MOSFET-based driver that amplifies MCU’s PWM output to switch a heavier external load | PWM1, GND | VCC1, GND | Load1 | DC motors, high-power LEDs, solenoids |
| PWM Channel 2 | Identical high-current PWM driver on a second channel | PWM2, GND | VCC2, GND | Load2 | Same as Channel 1 |

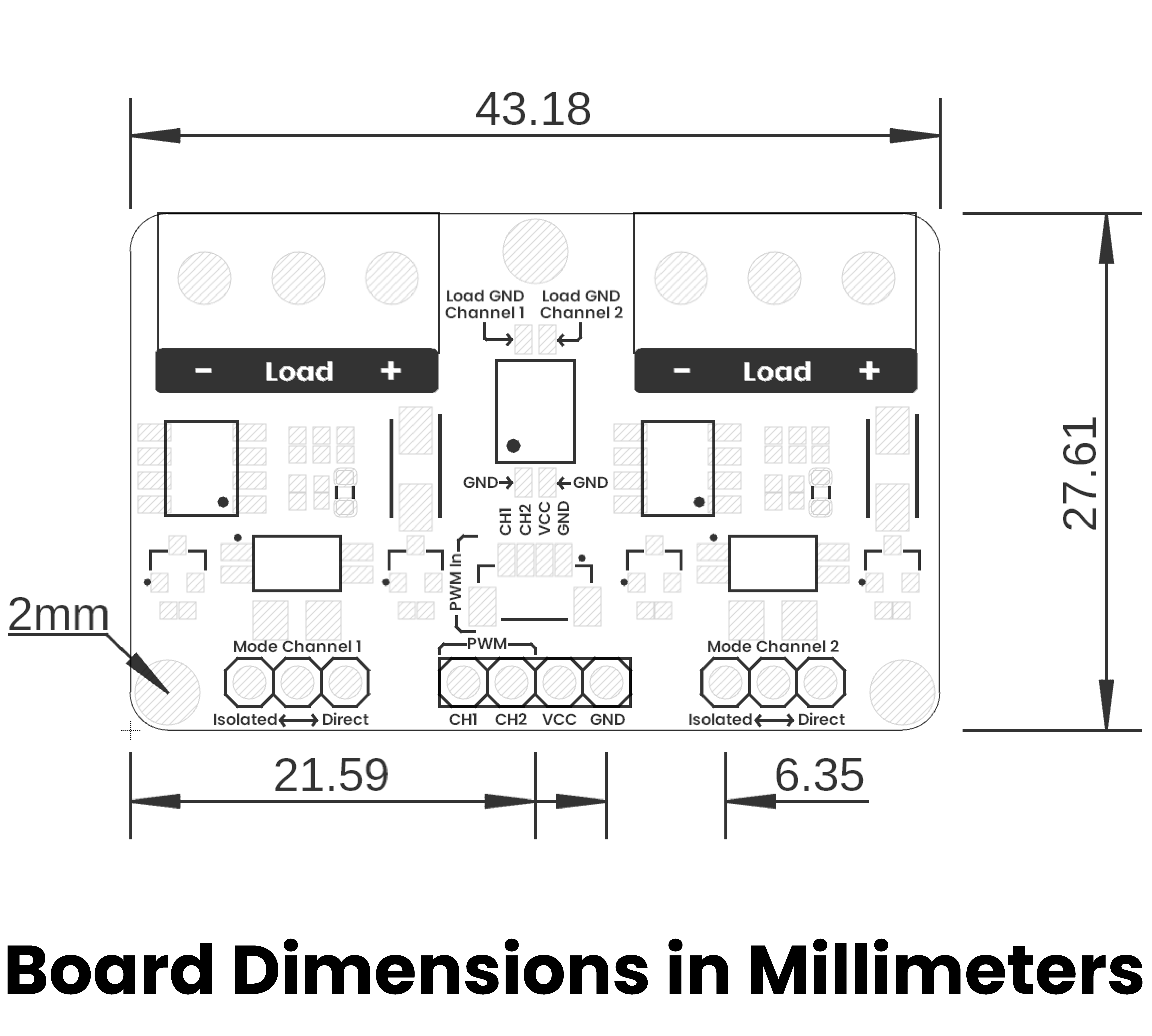

Dimensions

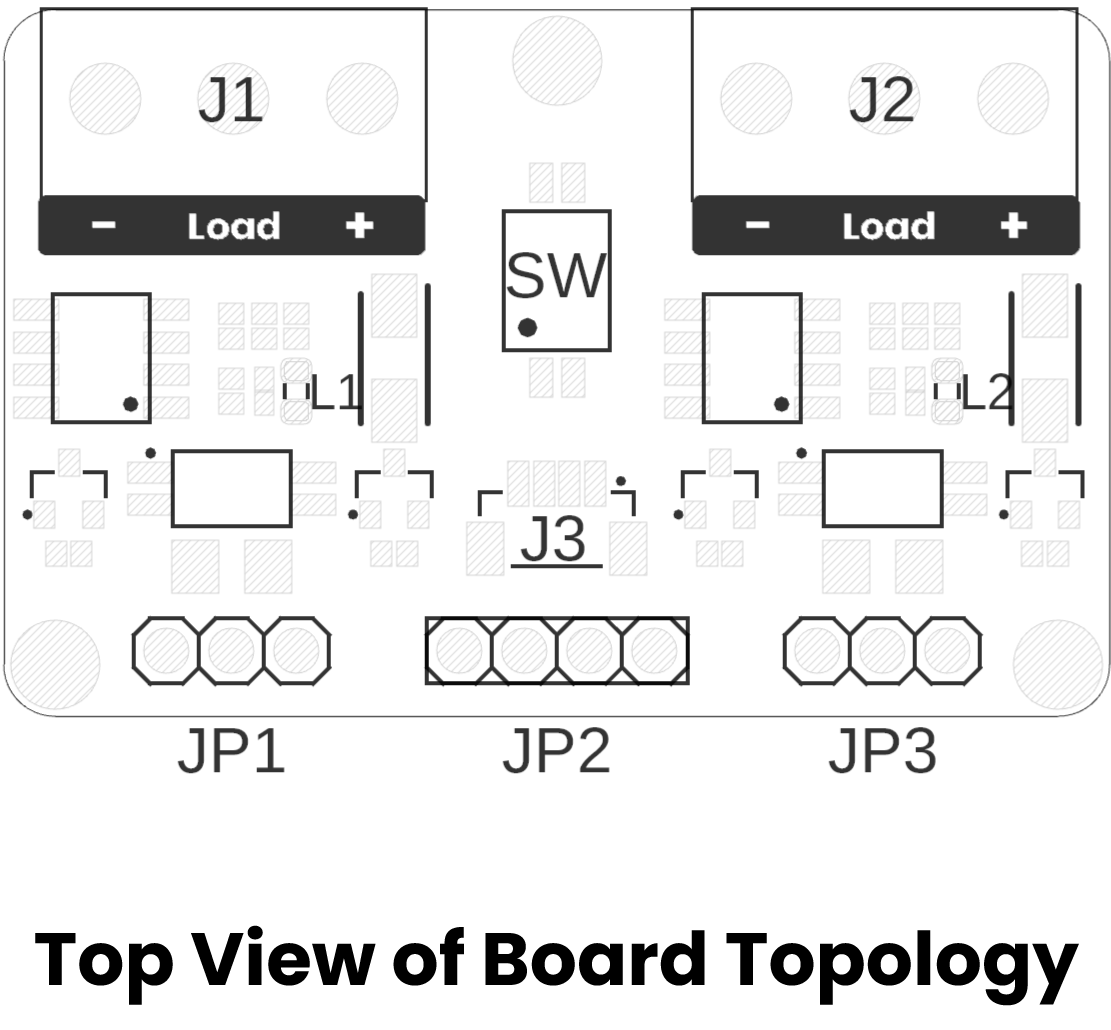

Topology
| Ref. | Description |
|---|---|
| SW | Dip Switch for coupling grounds |
| L1 | Channel 1 PWM LED |
| L2 | Channel 2 PWM LED |
| J1 | Screw Terminal Block for Channel 1 Load |
| J2 | Screw Terminal Block for Channel 2 Load |
| J3 | JST 1mm Connector for input signals |
| JP1 | Header for Channel 1 mode selection |
| JP2 | Header for input signals |
| JP3 | Header for Channel 2 mode selection |
