Hardware Overview
KEY TECHNICAL SPECIFICATIONS
🔌 CONNECTIVITY (Conectividad)
| Interface | Details |
|---|---|
| Primary Interface | GPIO (Analog) |
| Connector Type | JST 4-pin 1.0mm |
| Logic Levels | VCC |
⚙️ Technical Specifications
| Pin | Symbol | Type | Description |
|---|---|---|---|
| 1 | GND | Power | Ground reference (connect to MCU GND) |
| 2 | VCC | Power | +3.3 V to +5 V supply voltage |
| 3 | D0 | Analog | voltage ∝ ambient light; connect to an ADC input of your MCU |
Note: Do not exceed 5 V on VCC. SIO swings between 0 V (dark) and VCC (bright).

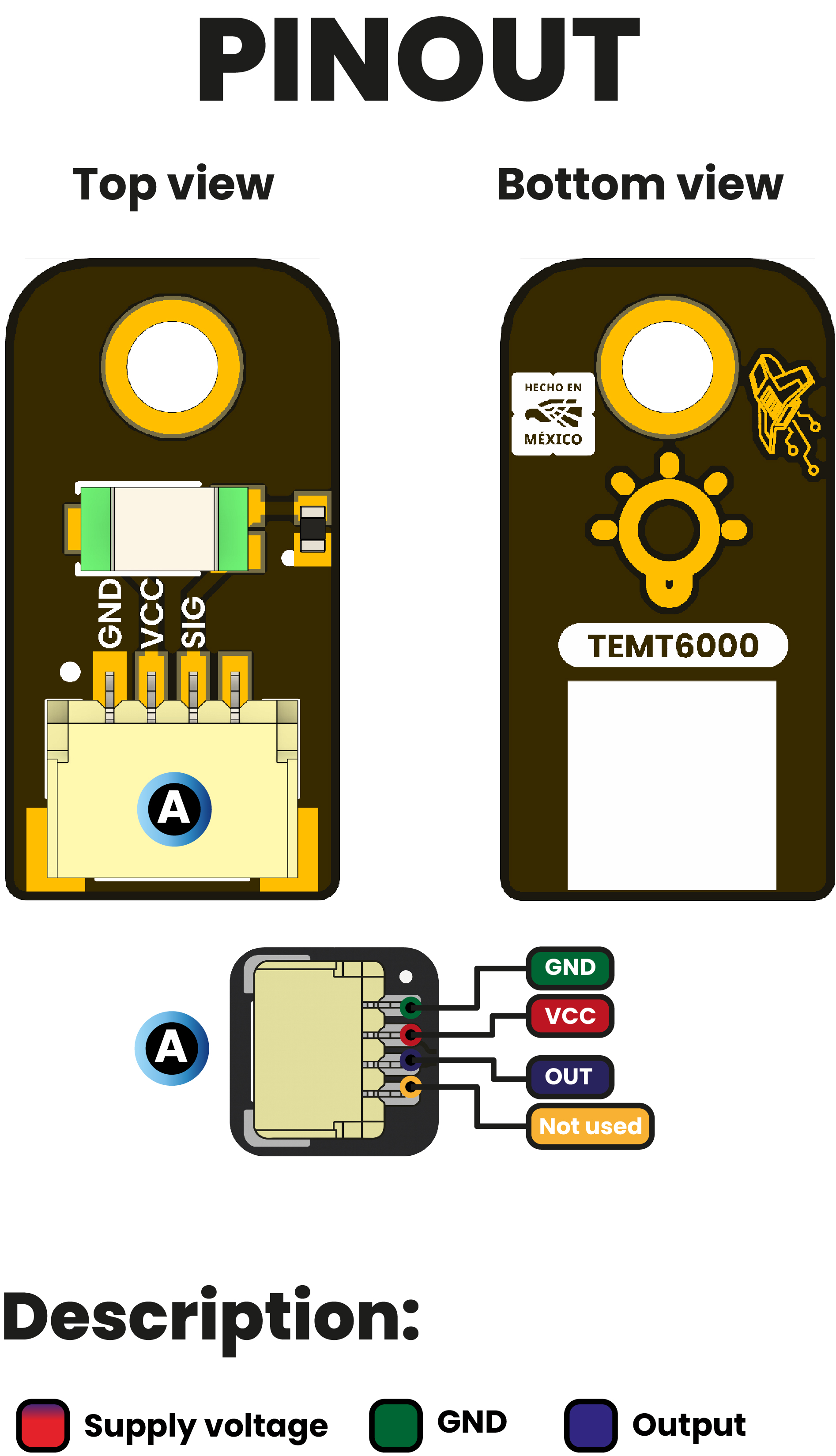

🔌 Pinout
Pinout Details
| Pin Label | Function | Notes |
|---|---|---|
| VCC | Power Supply | 3.3V or 5V, depending on design |
| GND | Ground | Common ground reference |
| D0 | Data Signal | Digital input/output signal |

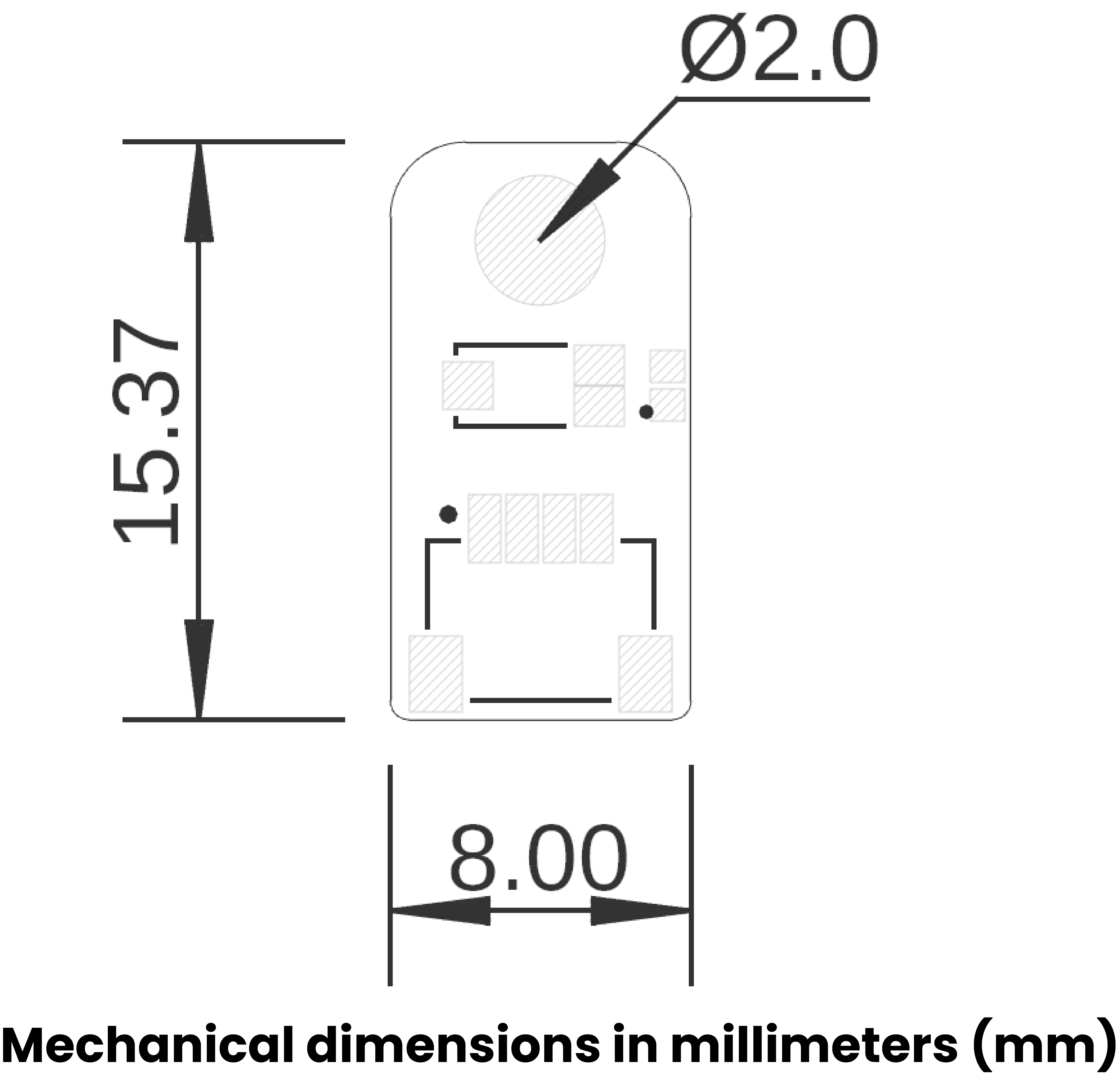

📏 Dimensions

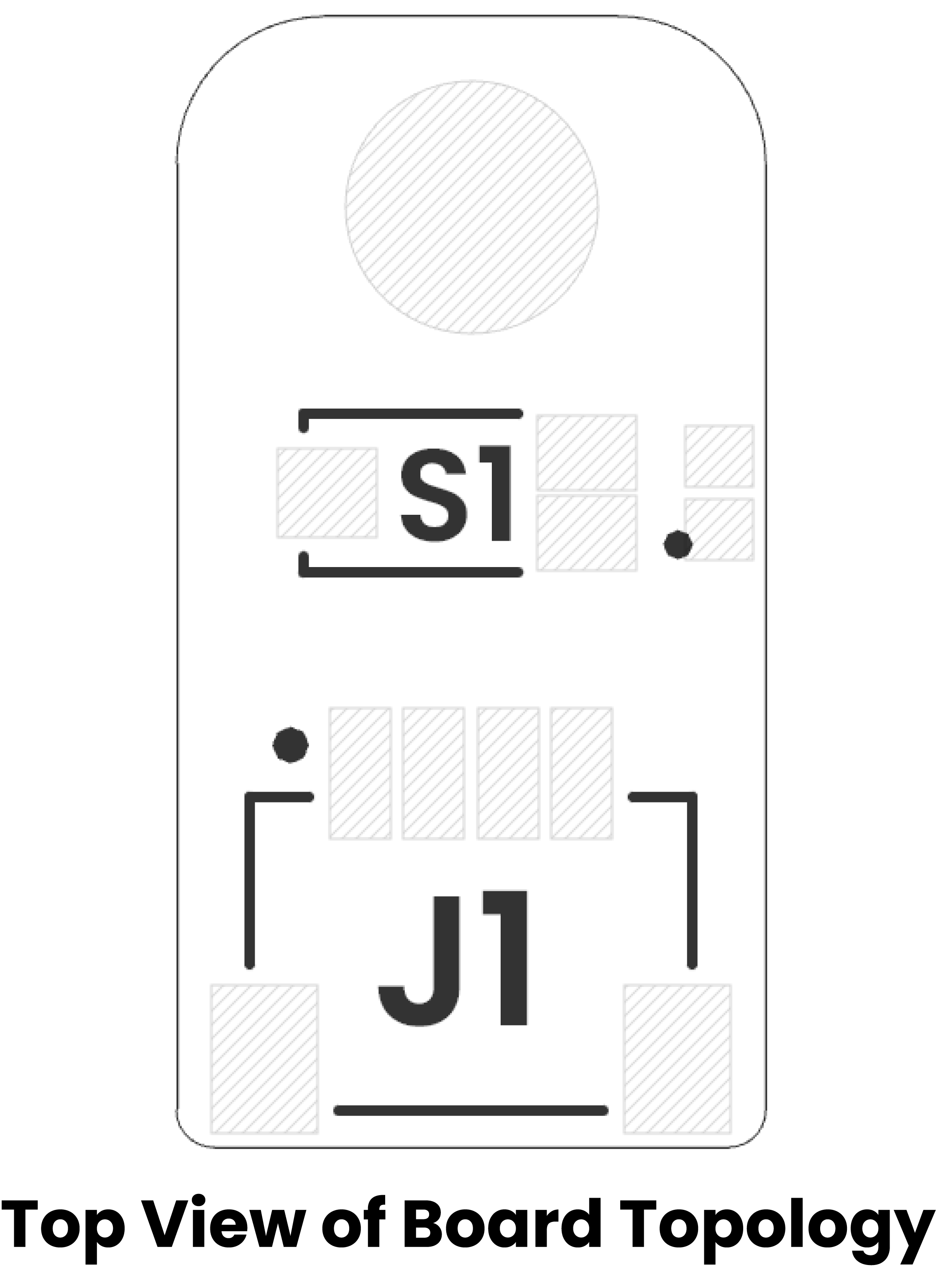

📃 Topology
| Ref. | Description |
|---|---|
| S1 | TEMT6000 Ambient Light Sensor |
| J1 | JST 1 mm pitch Connector for Power Supply and Signal |
