DualMCU ONE

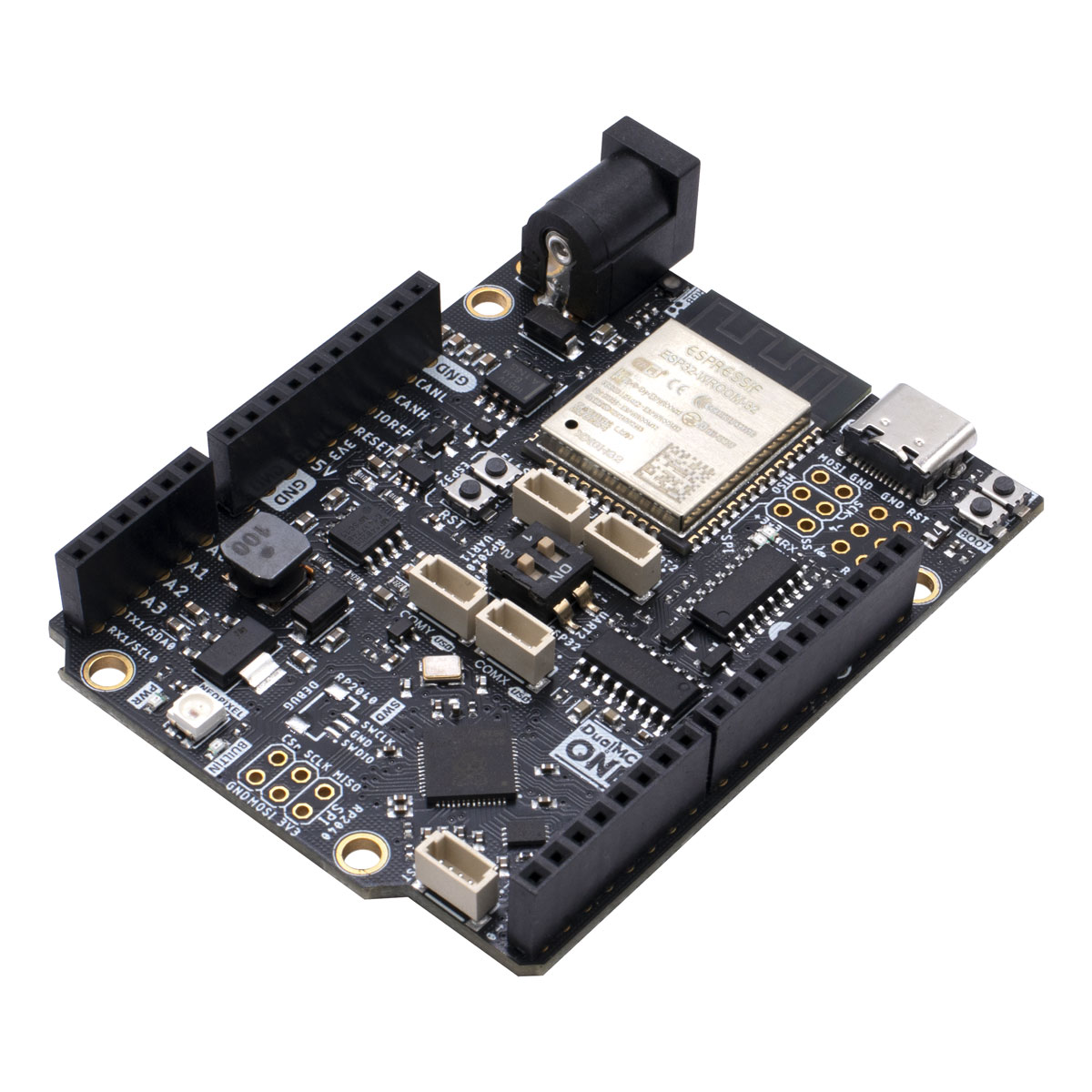

The UNIT DualMCU-ONE is a highly versatile development board that integrates the power of two microcontrollers: the ESP32 and the RP2040. Designed for advanced IoT, robotics, and industrial applications, it offers enhanced connectivity, robust power management, and full compatibility with Arduino UNO shields.
The DualMCU-ONE operates with 3.3V logic levels instead of the Arduino Uno’s typical 5V. Make sure any shield or peripheral connected is compatible with 3.3V logic to avoid potential damage.
| Resource | Link |
|---|---|
| MicroPython Course (English Version) | https://unit-electronics.github.io/DualMCU_Getting_Started/ |
| MicroPython Course (Spanish Version) | https://unit-electronics-mx.github.io/DualMCU_Curso_introductorio/index.html |
Key improvements over its predecessor, the DualMCU, include:
- SPI communication between the microcontrollers for improved data transfer.
- A USB Type-C hub that replaces the USB communication switch.
- CAN bus connectivity for industrial and automotive environments.
- Integrated connectors compatible with the STEMMA and QWIIC ecosystems.
For more details, check the product pages at:
| Resource | Link |
|---|---|
| Hardware-DualMCU-ONE | https://github.com/UNIT-Electronics/DualMCU-ONE/tree/main/Hardware |
| Product Reference Manual | https://github.com/UNIT-Electronics/DualMCU-ONE/blob/main/DualMCU-ONE(Product%20Reference%20Manual%20)%5BEN%5D.pdf |
| DualMCU-ONE Getting Started | https://unit-electronics.github.io/DualMCU-ONE/index.html |
Pinout

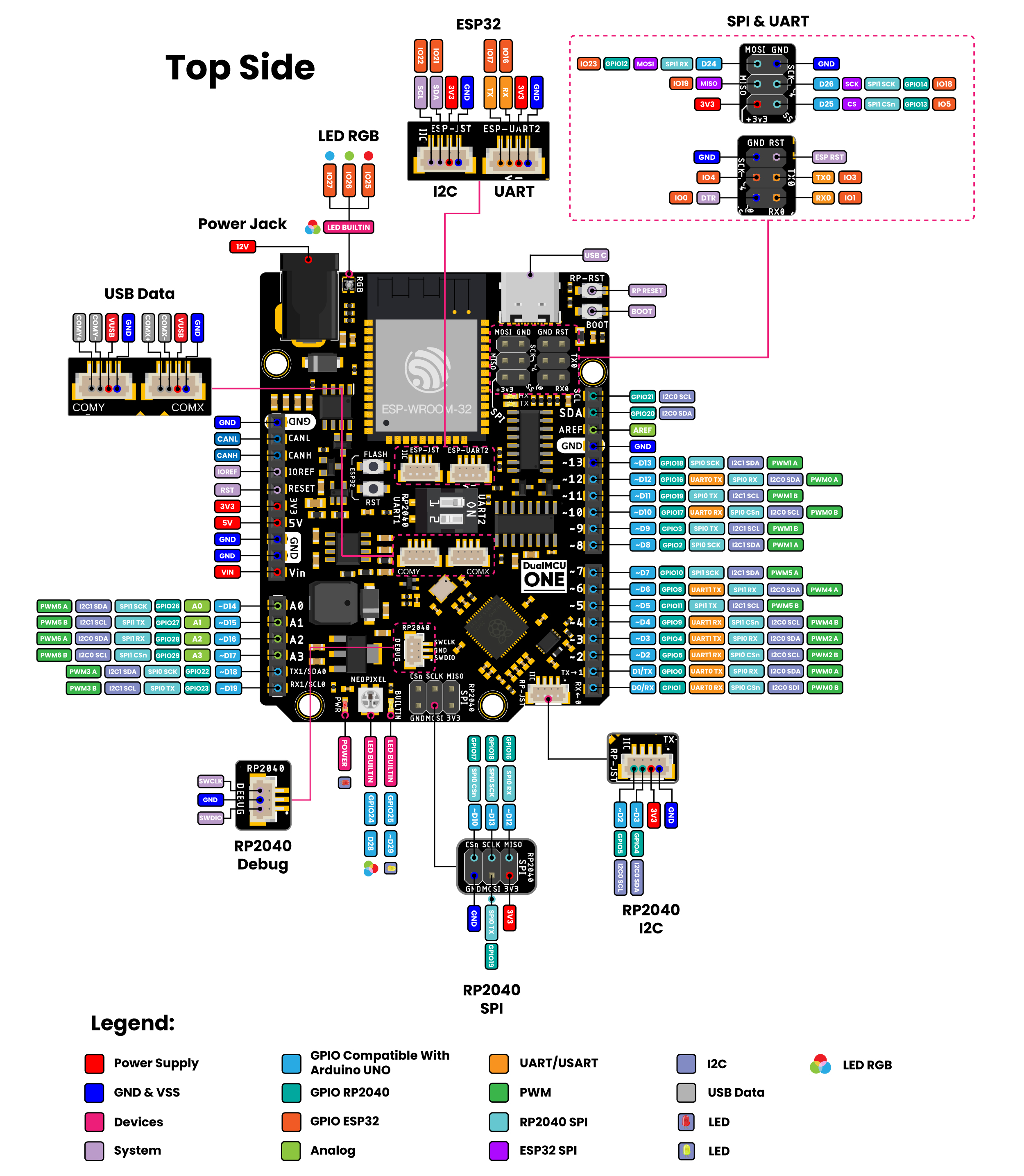

The DualMCU-ONE features a wide variety of input/output (I/O) pins that allow you to connect sensors, actuators, and other devices to the board. Below is the pinout of the DualMCU-ONE:
Features
-
Microcontrollers:
- RP2040: Dual-core ARM Cortex-M0+ at 133 MHz, compatible with Arduino UNO headers.
- ESP32: Wi-Fi, Bluetooth, and CAN bus capabilities.
-
USB Connectivity:
- Integrated USB Type-C hub for simultaneous communication with both microcontrollers.
- Additional support for USB devices through JST connectors.
-
Power Supply:
- Robust MP1482DS regulator supporting input voltages up to 18V.
- Provides a stable 5V output to power peripherals.
-
Storage:
- Optional MicroSD slot (up to 64GB), connected via the ESP32's QSPI interface.
-
I2C Connectors:
- JST-SH connectors compatible with the STEMMA and QWIIC ecosystems.
-
Additional Features:
- RGB 2020 LED and WS2812B LED for visual feedback.
- Optional FPC-24P connector for expanded access to the ESP32's GPIO.
Applications
The DualMCU-ONE is ideal for:
- Internet of Things (IoT): Wireless connectivity for smart devices.
- Education: Perfect for students and makers exploring advanced microcontrollers.
- Industrial: Robust communication via CAN bus for automotive and industrial applications.
- Prototyping: Full compatibility with Arduino UNO shields.
- Robotics: Multicore processing for complex systems.
Getting Started
The DualMCU-ONE supports:
- Arduino IDE for the RP2040 and ESP32.
- MicroPython and CircuitPython using IDEs like Thonny.
For setup and initial projects, refer to the Getting Started Guide.
License
This project is distributed under the MIT License.
