Unit QWIIC BUS Module

Description​

The Unit QWIIC BUS Module is an I2C expander designed for QWIIC bus compatibility. It features 2.54mm output connections and two 1mm JST-SR connectors, allowing multiple devices to connect to the same I2C bus. This module provides multiple connection points, offering flexibility to accommodate various sensors and devices. You can choose the optimal position based on your sensor’s requirements.

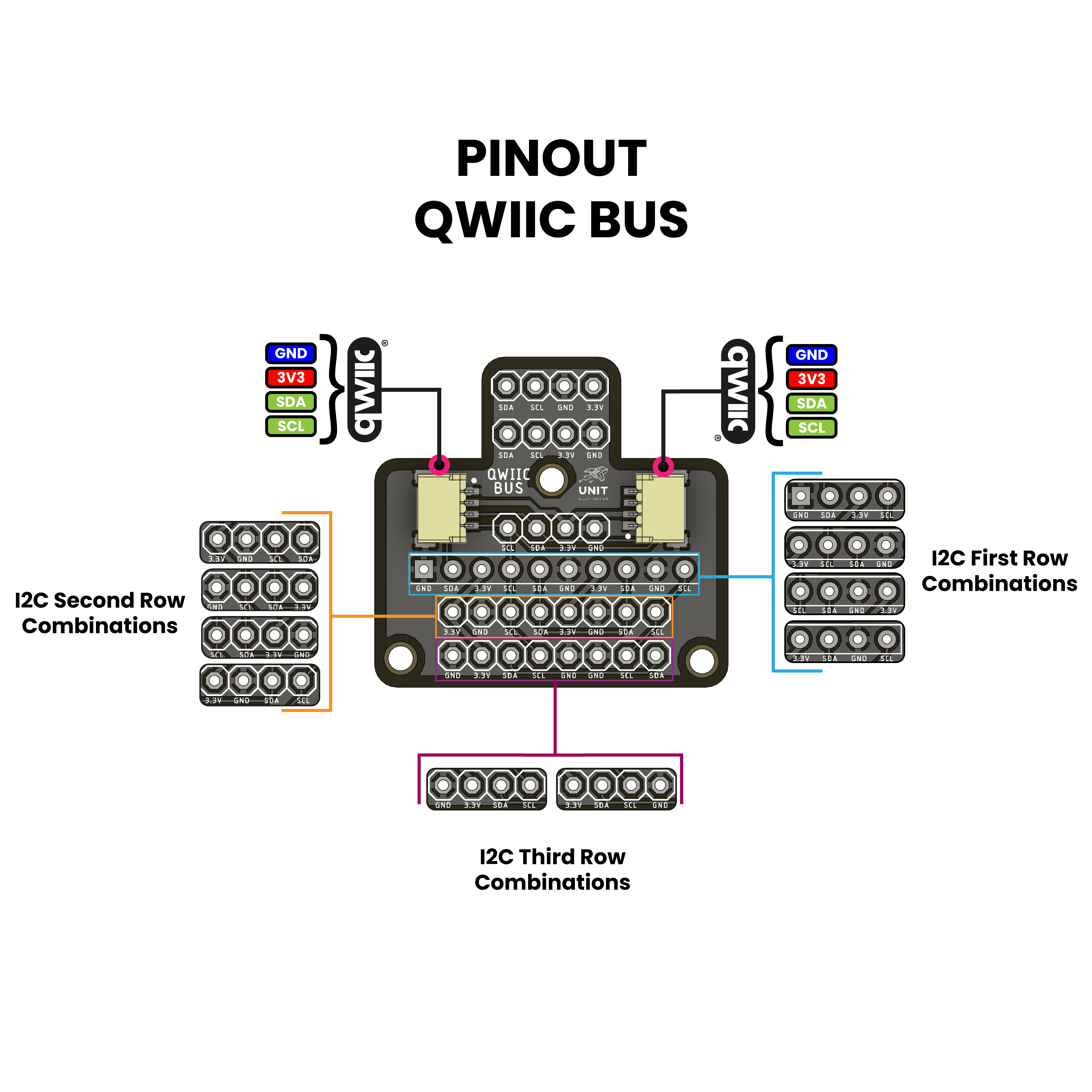

Unit QWIIC BUS Module

Tip:
The module is expandable with external cables, allowing you to connect multiple modules to the same I2C bus and increase the number of connected devices.
Alternatively, you can use our QWIIC HUB Expander for even more connectivity options. Check it out here:
UNIT Módulo HUB I2C QW-ST (5 Puertos)

Features​

  • 2.54mm output connections
  • 2x 1mm JST-SR connectors
  • Supports multiple devices on the same I2C bus
  • Flexible positioning for compatibility with various sensors
  • Expandable using external cables

Specifications​

  • I2C Expander Module
  • QWIIC Bus Compatible
  • 2.54mm Output Connections
  • 2x 1mm JST-SR Connectors

License​

This project is licensed under the GNU General Public License v3.0.
