TEMT600 Ambient Light Sensor
Introduction

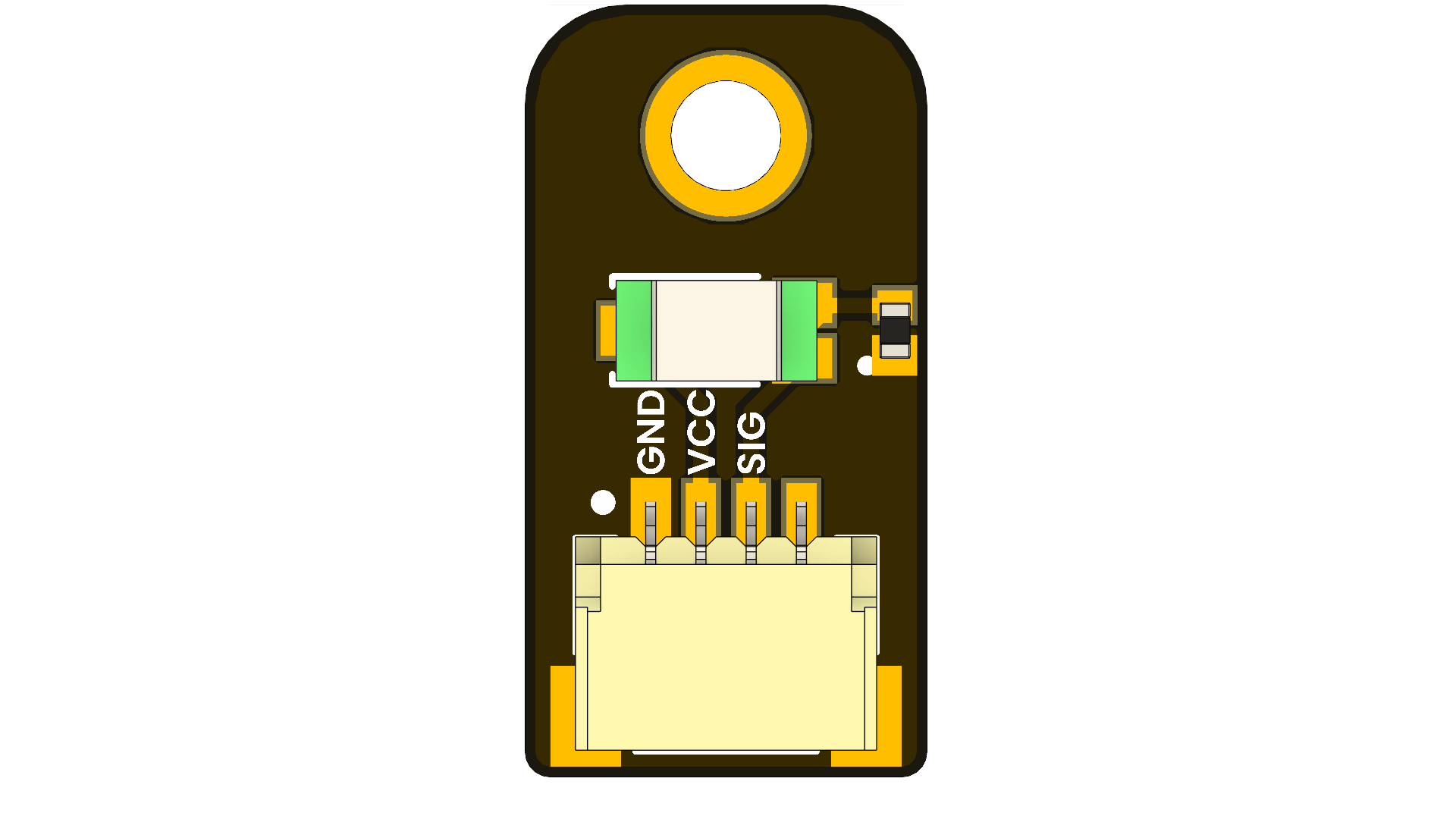

The TEMT600 Ambient Light Sensor Development Board is a compact module built around the Vishay TEMT600 phototransistor. It provides a linear analog voltage proportional to ambient light intensity, making it ideal for display back-light control, energy-saving systems, photographic exposure adjustment, and environmental monitoring applications.
📦 Overview
| Feature | Description |
|---|---|
| Sensor Type | Ambient Light Sensor (TEMT600) |
| Supply Voltage | 3.3V - 5V |
| Interface | Analog Output |
| Light Sensitivity | 0.2 to 1000 lux (typical) |
| Response Time | ~100 ms |
| Operating Temperature | -40°C to +85°C |
| Connector Type | JST 1.0mm 4-pin |
🧪 Use Cases
- Automatic display brightness adjustment
- Photographic light metering
- Smart home & IoT light sensing
- Plant/garden lighting control
- Wearable/light-level logging
- Data-logging & environmental sensing
📚 Resources
📝 License
All hardware and documentation in this project are licensed under the MIT License.
Please refer to LICENSE.md for full terms.
