ARM Cortex-M

ARM Cortex-M#

ARM Cortex-M microcontrollers—such as those found in the STM32, RP2040, PY32, and similar families—are built on ARMv6-M, ARMv7-M, or ARMv8-M architectures. These cores target low-power, high-performance embedded applications.

Core Families#

  • Cortex-M0 / M0+ (ARMv6-M): Ultra-low power, suitable for simple tasks.

  • Cortex-M3 / M4 / M7 (ARMv7-M): Higher performance; some models (like M4 and M7) support floating-point operations.

  • Cortex-M23 / M33 (ARMv8-M): Introduce enhanced security features, such as TrustZone.

Additional Notes#

  • The RP2040 uses dual Cortex-M0+ cores (ARMv6-M).

  • The PY32 series (e.g., PY32F003) typically uses a Cortex-M0+ core (ARMv6-M).

  • The STM32 family spans a wide range—from Cortex-M0 to M7 and even M33 in newer models.

OpenOCD (Open On-Chip Debugger)#

OpenOCD is an open-source software tool that facilitates debugging, in-system programming, and boundary-scan testing of embedded devices. It supports a diverse range of microcontrollers including STM32, RP2040, and PY32. Through interfaces such as JTAG or SWD, OpenOCD provides a command-line interface for effective interaction with the target devices.

PyOCD: A Python Interface to OpenOCD#

PyOCD simplifies the use of OpenOCD by providing a Python-based high-level interface. It offers a Python API that abstracts the complexities of the OpenOCD command-line interface, making it easier to program and debug microcontrollers. PyOCD is user-friendly, flexible, and designed to be extensible for various microcontroller interactions.

Tool

Functionality

OpenOCD

Provides a command-line interface for debugging and programming microcontrollers.

PyOCD

Offers a Python API for seamless interaction with microcontrollers via OpenOCD.

ARM Cortex-M Debug Capabilities#

Debugging Interface of ARM Cortex-M#

The ARM Cortex-M architecture includes a comprehensive debug interface that allows external tools to access the microcontroller core for debugging and programming tasks. This interface includes a suite of registers and commands that empower debuggers to halt the core, access memory, and manage the execution of programs.

Connection Through Debug Pins#

Access to the debug interface is facilitated through specific pins on the microcontroller, such as SWDIO, SWCLK, and nRESET. These are linked to a debug adapter like the ST-Link or CMSIS-DAP, which forms the physical bridge between the host computer and the target device.

CMSIS-DAP: A Standardized Debug Adapter#

Overview of CMSIS-DAP#

CMSIS-DAP (Cortex Microcontroller Software Interface Standard - Debug Access Port) serves as a standardized debug adapter for ARM Cortex-M devices. It is endorsed by OpenOCD and provides a cost-effective solution compared to proprietary debug adapters.

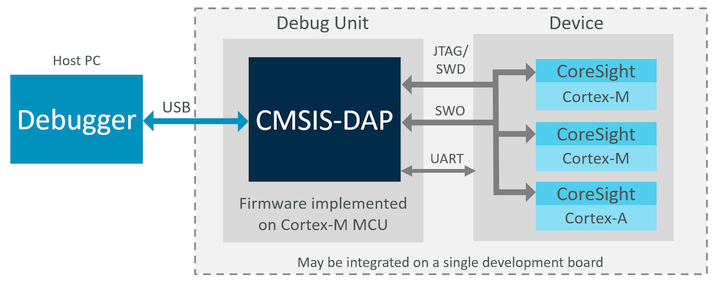

CMSIS-DAP Debug Adapter

SWD Communication Protocols#

Signals and Operations#

The SWDIO (Serial Wire Debug Input/Output) and SWCLK (Serial Wire Clock) signals are integral for communication over the SWD interface. SWDIO is a bidirectional line used for transmitting debug commands and data, while SWCLK is a clock signal that ensures synchronized data transfer between the host and the target.

Advantages of SWD Over JTAG#

Utilizing a two-wire connection, the SWD interface minimizes the pin count required compared to the traditional JTAG interface. This reduction is particularly beneficial for microcontrollers where pin availability is limited.
